Putting the World’s Impoverished Communities Online: Five Questions for Bob Marsh

  1. Posted by Jana Melpolder on June 18, 2018 in the categories: Publications

This post was originally published on Engineering for Change’s website and written by E4C’s Contributor Rob Goodier. View the original post here.

Bob Marsh installs WiFi antennas on the roof of a microfinance institution in the Democratic Republic of the Congo.

Bob Marsh is a household name and the subject of dinner party conversations in a certain kind of household and select dinner parties. The kind populated that are popular among computer scientists and engineers. In the 1970s, Marsh was an early member of the Homebrew Computer Club, where members traded tech and tips, and Apple co-founder Stephen Wozniak went to people’s homes to help them build their own Apple I. Together with Lee Felsenstein, also a member of the club, Marsh  designed and built the popular Sol-20 personal computer and began sales in 1976.

Now Marsh’s work reflects the club’s theme, “Give to help others.” He is the co-founder and executive director of Inveneo, traveling to underserved communities around the world to install computer and Internet connectivity hardware. He recently helped to put 100 youth centers in Palestine online, and trained technicians to operate a Network Operations Center in Accra, Ghana, as part of the Ebola Response Connectivity Initiative (ERCI) project that serves Ebola medical centers and NGOs in Sierra Leone, Guinea, and Liberia. In all, he has worked in 15 African countries, Bangladesh, Haiti and Nepal.

We asked Bob Marsh five questions.

E4C: You once said that a key difference between rural Africa and rural America is Google. Have you seen an example of the Google advantage at work after you’ve provided Internet access?

BM: Unfortunately, Inveneo staff rarely get a chance to return to project sites after completion. This is because we are usually sub-contractors for larger NGOs that are responsible for the M&E phases. Anecdotally, I personally have seen people in rural Kenya, Burkina Faso and Botswana using Google at project sites. However, I don’t remember what they were searching for.

My point was that it’s quite difficult to get information from outside one’s own rural community without Internet access, but that we here in the rich countries now take for granted (and hardly think twice about it) access to a vast array of information on any subject.

E4C: Would you tell us a little about the hardware that you’re installing in developing countries?

BM: Originally, back in 2005, we were building our own low power consumption 12VDC battery-powered computers using VIA motherboards. These had rather low CPU horsepower, but enough to run a Linux desktop and server. We found a number of 12VDC LCD monitors to pair with the VIA PCs.

The next year we found a thin-client PC made by Wyse that was very small and inexpensive and we created our own Linux distro to run in just 128MB of memory.

By late 2007, low power computing had become somewhat mainstream, and we found an AMD-powered unit made in Taiwan that would run either Linux or Windows XP or 7. This unit was considerably more powerful than the Wyse and could include a 16GB 2.5” hard drive or 4GB SSD storage.

By 2009, Taiwan’s Asus began making very low power complete systems that included Windows 7 for reasonable prices (as low as $255). Inveneo used various models of the Asus eeeBox series for several years after that, plus some very low power LED/LCD monitors from Asus.

However, for the past two years, we’ve been more involved with tablet-based projects, primarily using the Google Nexus 7 series, also made by Asus.

E4C: What are some of the obstacles in hardware installations that you face now?

BM: Printers remain a challenge. While laser printers have the lowest cost per page, they use a lot of power. Inkjet printers can use very little power, but often use a lot of expensive ink cartridges.

The main challenges in rural IT installations are:

  1. Either complete lack of electricity, or poor quality electricity from the national grid.
  2. High heat and humidity, or even worse in many cases, lots of dust.
  3. Lack of knowledgeable technical support people outside of the capital city.
  4. Lack of broadband Internet access at an affordable price.

E4C: What are some of the improvements that you’d like to see in the technology that you work with in developing countries?

BM: Needed are:

  1. Cheaper and simpler solar power systems, longer life battery energy storage
  2. Cheaper broadband mobile infrastructure (I believe Facebook is working on this, as are others)

Frankly, a lot of the challenges are more software related, e.g. more comprehensive materials that follow a country’s curricula, software to track pupils progress and attendance, as well as teacher performance.

E4C: Do you have a story from your work that gives a glimpse of a day in your life on the road?

BM: Local knowledge is always valuable, but we learned early on to remain skeptical. In Western Uganda, we did a project to connect houses in 5 villages to an Community Center office near the highway (a very dusty dirt road) that had an Internet connection. Each house would have a low power computer, solar panel and battery, with a long range wifi radio to access Internet and a local VoIP service.

We only had a hand drawn map showing the various neighboring villages, as they were not shown on any other paper or online maps. One targeted village was 1000ft up on the slopes of the Ruwenzori Mountains nearby, but there were a number of similar looking villages that could be seen with the naked eye or binoculars. So we asked three different local people to point out which village was the correct one, and received three different answers. Ultimately we sent people up to the village, who had to walk up steep path, as there was no road. Even with binoculars from the They used a mirror to flash their location to some of us at the bottom of the hill, and we found that the correct mountain-side village was none of the three that the locals had pointed out! Worse, that target village could not be seen from the Community Center, and as the radio links needed direct Line-of-Sight, we had to completely re-configure the whole network to find a way to reach the mountain-side village.

This post was originally published on Engineering for Change’s website and written by E4C’s Contributor Rob Goodier. View the original post here.

What Is Inveneo Doing in the Ebola Response Connectivity Initiative (ERCI) Project?

  1. Posted by Jana Melpolder on January 21, 2015 in the categories: News

Inveneo recently co-launched the exciting announcement about its partnership in expanding ICT support in West Africa in order to fight and stop the spread of Ebola. Our team is proud to recently partner up with Cisco, Facebook, EveryLayer, NetHope, and the Paul G. Allen Family Foundation in order to provide sustainable Internet connectivity in medical centers in Liberia, Sierra Leone, and Guinea. These new Internet connections will enhance Internet connectivity for relief agencies, reorder supplies, and more. The Inveneo team will be working hard with our Inveneo Certified ICT Partners (ICIPs) in Sierra Leone and other parts of West Africa to ensure connectivity for those who need it most in Ebola-stricken communities.

16124307380_4f8b755373_o

Members of a training session that Inveneo held in San Francisco.

As a partner of the ERCI project, Inveneo recently hosted a training session for all current and incoming Inveneo contractors and engineers. Led by EveryLayer’s Andris Bjornson, the training session provided our engineers specific details on how EveryLayer designed the project’s broadband solution. According to our recent Press Release, our project “is based on a combination of extending satellite technology and strengthening existing service provider networks with carrier-grade Wi-Fi technology. The network can be deployed at a lower cost and on a faster time horizon than traditional mobile networks.” It is Inveneo’s job going forward to deploy this architectured solution and bring it to a full reality. We will be doing so while working alongside local partners as well to ensure that sustainable, low-cost Internet connectivity is available in relief agency offices and medical centers long after Inveneo staff leave West Africa.

16321658155_0d574bea14_o

Preliminary planning meeting in Accra. From left to right: Inveneo’s Eric Kunke, Emerson Tan, Inveneo’s Senior Field Engineer Samuel Perales, Kafui Prebbie, and Inveneo ICIP Eugene Tani-Luke. Photo Credit: Eugene Tani-Luke/Inveneo

Going forward, Inveneo will have staff members or local partners continuously in Ghana and Sierra Leone. We recently deployed Senior Field Engineer Samuel Perales and Engineer Eric Kuhnke to Accra, Ghana to coordinate with staff of NetHope and other NGOs to plan next steps. They have been taking extensive preventative measures to ensure health and safety at all times. In addition, much of our equipment has been arriving in a warehouse in Accra, Ghana, and in Freetown, Sierra Leone, and our staff has been very busy organizing all the equipment.

Our team is thrilled to work together with our partners and ICIPs throughout the ERCI project. We will keep you updating on how the project is progressing with posts, photos, interviews and more. Best of luck to our staff members and local partners – be safe and we look forward to watching the ERCI project unfold!

16240075975_0c7178ea9a_o

A VSat installation at Port Loko Ebola Treatment Center in Sierra Leone – Photo Credit: Eugene Tani-Luke/Inveneo

Report: No Electricity Means No Internet

  1. Posted by Jana Melpolder on August 5, 2014 in the categories: Publications, Relief

“I came to Uganda to run the technical side of a mobile phone company. Instead, I was running the largest  diesel fuel distribution company in the country—in order to run the mobile phone company,” says Francis Kazinduki, former CTO of MTN in Uganda. And he is not alone.

This quote, taken from Dr. Laura Hosman and Dr. Laura Elizabeth Armey’s study on “The Centrality of Electricity for Internet Uptake in Low-Income Countries”, is a common sentiment among ICT professionals working in low-income countries. In their innovative study, Hosman and Armey analyze Internet usage growth in diverse locations from Mali to Haiti, and Sierra Leone to the Solomon Islands. What, they ask, is a key factor influencing ICT adoption across all of these low-income countries?

Their answer:  Access to electricity.

worldatnight'Increased distribution of electricity across a nation is a key vanguard to ICT development success. Using dynamic panel data analysis, the two researchers based their findings on a unique data set taken from satellite images that capture the quantity and distribution of light that can be observed at night from outer space. This data set mediates variables such as defining what constitutes access to electricity and protects the study from faulty self-reported national electricity and energy data. While other researchers have used similar data sets for other purposes, this study is the first of its kind to use night-lights to measure real electricity use.

Hosman and Armey recommend pursuing policies that expand the distribution of electricity to greater numbers of people, not just increasing the total electrical output in each country, which tends to prioritize cities. The more people that have access to electricity, the greater demand will be for using the Internet and other related technologies. It is fruitless, they say, to discuss a digital divide where electricity does not exist. Many ICT projects have collapsed because they don’t fully realize the existing (or absent) electrical infrastructure within a country. Addressing the electricity divide between high-income and low-income countries will not only spur industrial and knowledge-based economic growth, but will enable millions around the world to connect online.

The key lesson to be learned? ICT development initiatives must first consider a location’s existing electrical infrastructure before setting up shop. The idea seems simple – it is just often overlooked.

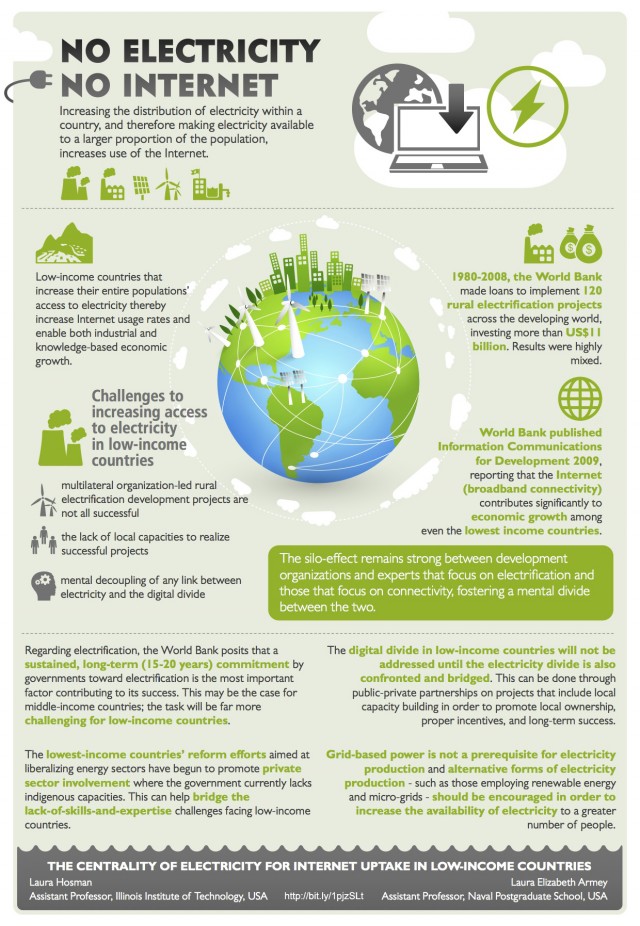

The infographic below is based off the study and was created by Bruce Baikie, Inveneo’s Executive Director. You can follow him on Twitter for more ICT updates at @BruceICT4D. This article was republished with permission from ICTworks.

UpdatedNoElectricityNoInternet
